Bias and Priors in Machine Learning Calibrations for High Energy Physics

The Big Picture

Imagine you’re trying to calibrate a thermometer, but every time you use it in a new environment, it gives slightly wrong readings. Not because it’s broken, but because your calibration assumed a fixed temperature range. Deploy it somewhere hotter or colder, and you’re off. Now imagine that thermometer costs a billion dollars and lives inside the Large Hadron Collider, the world’s most powerful particle accelerator.

That’s the challenge facing physicists who use machine learning to calibrate detectors at the LHC. Calibration ensures measurements are “correct on average,” so that when you measure the energy of a jet (a narrow cone of particles spraying from a proton collision), you’re getting the true energy, not a detector artifact.

Machine learning has raised hopes of transforming this process. But a new paper from MIT’s Jesse Thaler, Rikab Gambhir, and Lawrence Berkeley’s Benjamin Nachman sounds a clear warning: many promising ML calibration methods carry a hidden flaw that could corrupt the physics they’re meant to protect.

The researchers lay out how prior dependence, the tendency of ML models to silently absorb assumptions baked into their training data, can bias calibrations. They argue for a specific approach that sidesteps this trap for one class of calibrations, while honestly flagging a genuine unsolved problem for the other.

Key Insight: A machine learning calibration trained on one distribution of particle energies will give subtly wrong answers when applied to a different distribution, and collecting more data won’t fix it.

How It Works

The experimental pipeline goes roughly like this: particles collide, detectors record the resulting spray, and physicists infer what actually happened. The gap between what the detector records (detector-level features) and the underlying truth (truth-level features, like actual jet energy) has to be closed by calibration. Get it wrong, and every downstream measurement (Higgs boson properties, new-particle searches) inherits that error.

Two flavors of calibration are at play:

• Simulation-based calibration trains on (detector measurement, true value) pairs from detailed physics simulations, learning to map one to the other.
• Data-based calibration takes a different goal: it adjusts simulated distributions to match real experimental data, correcting for imperfections in the simulation itself.

For simulation-based calibration, the standard approach trains a neural network to minimize mean squared error (MSE), how far predictions stray from true values on average. Minimizing MSE drives the model toward the conditional average true value for each detector measurement. The problem: that average depends on the training distribution.

• The model learns E[truth | detector measurement] averaged over the training sample.
• Deploy it on a different distribution and the conditional average shifts, even if the detector’s physical response is identical.

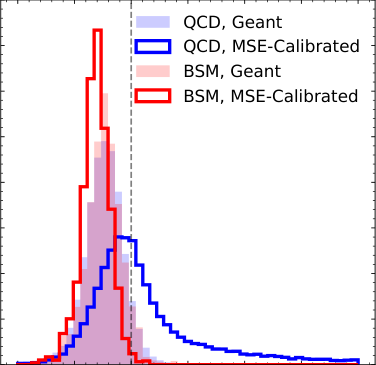

This isn’t subtle. The paper shows with explicit Gaussian examples that a calibration derived from jets peaking at 100 GeV (gigaelectronvolts, the standard energy unit in particle physics) gives wrong answers on jets peaking at 200 GeV, even when the detector behaves identically at both energies.

The authors then ask whether their Gaussian Ansatz approach fares better. Rather than learning a single average, this method models the full shape of the detector response, fitting it to a bell curve and extracting parameters directly. Because it captures the response shape rather than a sample-averaged statistic, it achieves prior independence: the calibration works regardless of what true-energy distribution you feed it. The answer is yes, with important caveats.

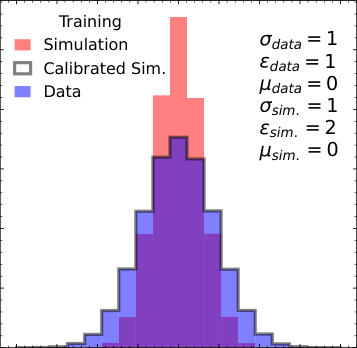

The situation for data-based calibration is grimmer. Here the goal is to learn reweighting functions, adjustments that upweight or downweight simulated events until the simulation matches real data. Recent ML proposals learn these weights from a specific event sample, but the weights break down on events drawn from different underlying distributions. The paper traces this to the same root cause. No prior-independent data-based calibration method exists yet.

The authors ground these findings in a concrete jet energy study using simulated LHC data: train on one energy distribution, test on another. The biases are real and quantifiable. The Gaussian Ansatz substantially outperforms naive MSE-based calibration in the simulation-based case; data-based approaches show persistent prior-induced bias regardless of the ML method used.

Why It Matters

Calibration is the invisible foundation of every measurement at the LHC. Experiments like ATLAS and CMS calibrate jet energies, muon momenta, electron energies, tau leptons, and heavy-flavor jet identification, and the field has been rushing to replace traditional methods with ML. If those ML methods are inherently prior-dependent, improvements in one context can silently create systematic errors in another. A new-physics search relying on a calibration derived from a control sample with different kinematics could be quietly, systematically wrong.

There is also a genuine theoretical gap here. Prior-independent simulation-based calibration is solvable, and the Gaussian Ansatz offers a practical path forward. Prior-independent data-based calibration (correcting for simulation imperfections across a wide range of physics processes) remains open. The authors are transparent about this precisely so the community can build better methods.

Bottom Line: ML calibrations for particle physics detectors can secretly inherit the biases of their training data, corrupting downstream measurements. The fix exists for simulation-based calibration but remains an unsolved challenge for data-based methods.
