Challenges for Unsupervised Anomaly Detection in Particle Physics

The Big Picture

Imagine you’re a security guard at the world’s busiest airport, tasked with spotting suspicious behavior, but you’ve never been told what suspicious looks like. You can only study the millions of ordinary travelers passing through each day, building up an intuition for “normal,” and hope that anything truly unusual will stand out.

That’s the challenge physicists face at the Large Hadron Collider (LHC). Particle collisions produce an overwhelming flood of routine subatomic interactions, ordinary physics we already understand, and the hope is that exotic new physics will announce itself as different.

The LHC has found no clear evidence of new particles beyond the Standard Model (physicists’ current best theory of all known matter and forces) despite years of searching. One reason may be that searches have been too narrowly tailored to specific hypothetical signals. A more flexible strategy is unsupervised anomaly detection: train an algorithm only on “boring” background events, then flag anything that looks unusual.

This approach requires no assumptions about what new physics looks like. But a study from Harvard physicists at IAIFI reveals it faces deeper challenges than previously appreciated. Katherine Fraser, Samuel Homiller, Rashmish Mishra, Bryan Ostdiek, and Matthew Schwartz systematically probed why a class of neural networks called variational autoencoders struggle with particle physics anomaly detection, and uncovered a geometric insight that points toward better methods.

Key Insight: The choices that best compress and represent background events are not necessarily the choices that best expose signal events as anomalies, a fundamental tension at the heart of unsupervised anomaly detection.

How It Works

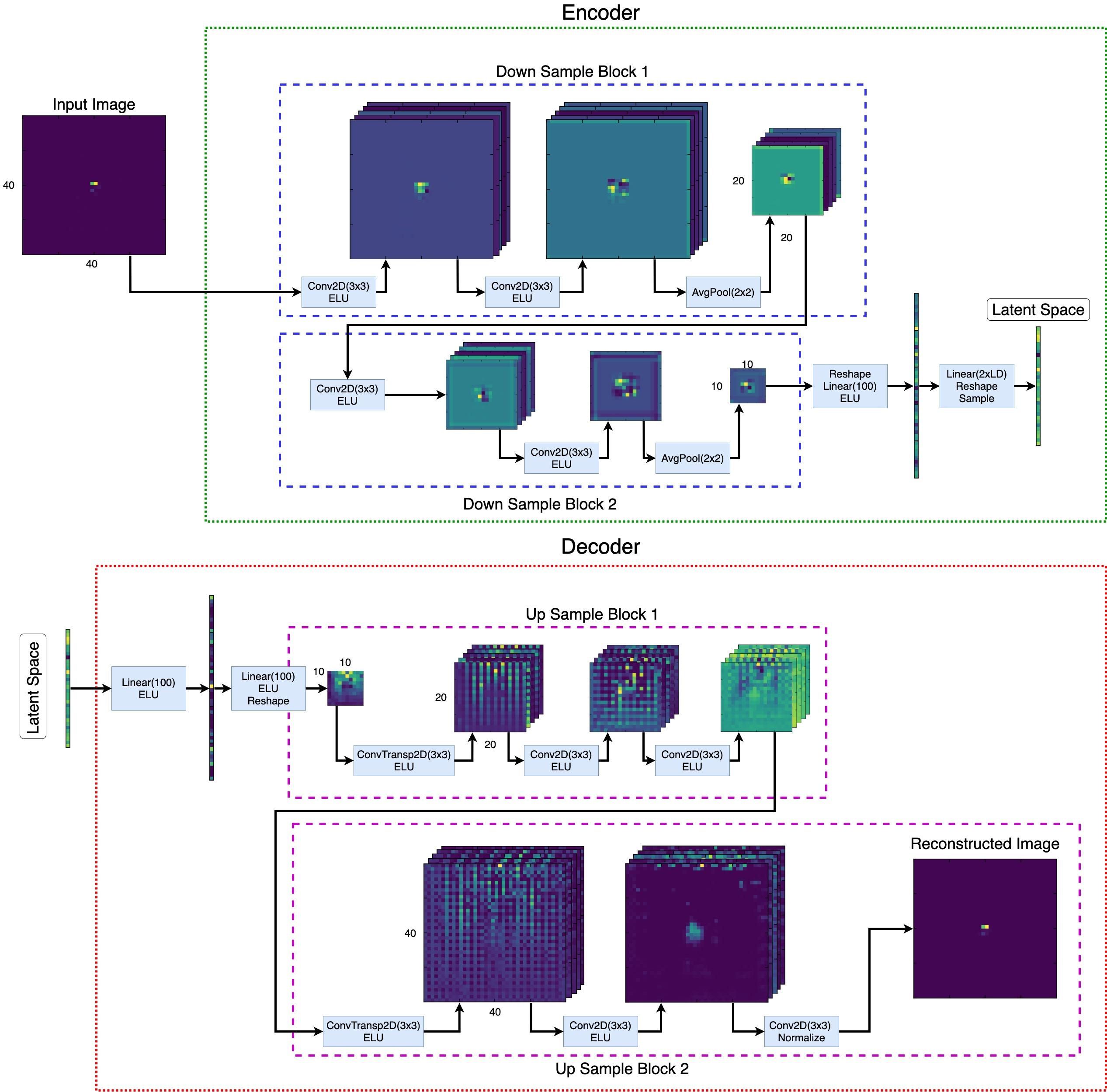

The workhorse of modern unsupervised anomaly detection in particle physics is the variational autoencoder (VAE), a neural network that learns to compress data into a compact representation and then reconstruct it. Think of it like a lossy photo compressor: squeeze an image down, then expand it back. If the original was typical, the reconstruction will be faithful. If it was unusual, details get lost.

Train a VAE on background-only data and it learns the structure of normal events. When a signal event shows up, the VAE can’t reconstruct it well, producing a high reconstruction error (the gap between the original and the network’s best attempt) that works as an anomaly score.

The team tested this on jets, the sprays of particles produced when quarks and gluons scatter at high energy. Their background consisted of ordinary QCD jets, the routine particle showers dominating most LHC collisions. Their signals were top quark jets and W boson jets, both with distinctive multi-pronged substructure compared to the smooth QCD baseline. Jets were represented as images: two-dimensional maps of energy deposits in the detector.

Performance depends heavily on hyperparameters, tuning knobs set before training. These include the size of the latent space (the compressed internal representation, analogous to the small file in the photo analogy), the relative weight of the reconstruction loss versus the KL divergence (a penalty that keeps the compressed representation organized), and the distance metric used to measure reconstruction error. Systematic variation of these choices revealed:

• Optimal settings for detecting top jets were often non-optimal for W jets
• Small changes in KL weight dramatically shifted performance, sometimes reversing which signal the network could best identify
• No single configuration worked best for all signals simultaneously

For a tool that’s supposed to be model-agnostic, this is a problem. If tuning for one signal hurts sensitivity to another, the whole point is undermined.

While probing the VAE’s internals, the researchers noticed something unexpected: distances between events in the latent space were strongly correlated with Wasserstein distances (also called optimal transport distances) between the original jet images. Wasserstein distance has a clean physical intuition. It measures how much “work” it takes to rearrange the energy deposits in one jet image to match another, treating energy as dirt that needs to be moved.

This connection suggests the VAE is learning a compressed version of optimal transport geometry. That prompted a direct question: why use an autoencoder at all? The team developed an event-to-ensemble distance approach. Select a set of representative background events, then score each new event by its optimal transport distance to those representatives. No neural network training required, just a physically interpretable measure of deviation from typical background.

The results matched the best VAE configurations in performance, and they illuminated the same fundamental tension: the set of representative events that best describes the background is not the set that best separates signal from background.

This tracks with a deep statistical principle. The best density estimator concentrates resources on high-probability regions, the bulk of the background. But anomaly detection needs sensitivity at the edges, where rare signal events lurk. These goals pull in opposite directions.

Why It Matters

These findings change how physicists should think about anomaly detection at the LHC. The autoencoder paradigm implicitly assumes that learning to represent background well will naturally make signal events stand out. This paper shows that assumption is fragile: the optimization target (reconstruction fidelity on background) isn’t aligned with the goal of signal discovery.

The optimal transport connection offers a computationally lighter and more interpretable alternative to VAEs. You can understand exactly why an event gets flagged, in terms of jet geometry. But it runs into the same wall. Both approaches are caught in the same tension between description and discrimination.

The strongest takeaway is the case for semi-supervised approaches, methods that incorporate even weak or indirect information about what signals might look like, as a necessary complement to fully unsupervised searches. Hybrid strategies that combine the broad sensitivity of unsupervised methods with even minimal signal priors may be the most productive path forward for new physics discovery at the LHC.

Bottom Line: Variational autoencoders for particle physics anomaly detection are more sensitive to hyperparameter choices than previously recognized. The optimal transport geometry they implicitly learn can be used directly, but no unsupervised method can fully escape the tension between modeling background and detecting signal. This points toward semi-supervised approaches as a more promising direction.

---
