Classical Shadows for Quantum Process Tomography on Near-term Quantum Computers
Authors
Ryan Levy, Di Luo, Bryan K. Clark
Abstract
Quantum process tomography is a powerful tool for understanding quantum channels and characterizing properties of quantum devices. Inspired by recent advances using classical shadows in quantum state tomography [H.-Y. Huang, R. Kueng, and J. Preskill, Nat. Phys. 16, 1050 (2020).], we have developed ShadowQPT, a classical shadow method for quantum process tomography. We introduce two related formulations with and without ancilla qubits. ShadowQPT stochastically reconstructs the Choi matrix of the device allowing for an a-posteri classical evaluation of the device on arbitrary inputs with respect to arbitrary outputs. Using shadows we then show how to compute overlaps, generate all $k$-weight reduced processes, and perform reconstruction via Hamiltonian learning. These latter two tasks are efficient for large systems as the number of quantum measurements needed scales only logarithmically with the number of qubits. A number of additional approximations and improvements are developed including the use of a pair-factorized Clifford shadow and a series of post-processing techniques which significantly enhance the accuracy for recovering the quantum channel. We have implemented ShadowQPT using both Pauli and Clifford measurements on the IonQ trapped ion quantum computer for quantum processes up to $n=4$ qubits and achieved good performance.
Concepts
The Big Picture
Imagine trying to understand a mysterious machine by feeding it inputs and observing outputs. Simple enough, until the machine obeys quantum mechanics.
In the quantum world, measuring disturbs what you’re measuring. That’s not a flaw in your instruments; it’s a fundamental rule of physics. And for a device with even a few quantum bits, the number of measurements needed to fully characterize its behavior grows exponentially. Fully mapping a 10-qubit quantum device with traditional methods could require more experiments than there are atoms in the observable universe.
This is the problem at the heart of quantum process tomography (QPT): characterizing what a quantum device does, not just for one specific input, but for any possible input. QPT is essential for building trustworthy quantum computers, but its costs have historically been staggering.
A team from the University of Illinois, the Flatiron Institute, MIT, and Harvard’s NSF AI Institute (IAIFI) has developed ShadowQPT, a smarter approach that slashes those costs using a technique called classical shadows.
ShadowQPT extends the classical shadows trick from quantum states to quantum processes, enabling full characterization of quantum devices with logarithmically, not exponentially, many measurements for many practical tasks.
How It Works
Classical shadows, introduced by Huang, Kueng, and Preskill in 2020, work like a statistical compression scheme. Instead of measuring every property of a quantum state directly, you apply random quantum operations, measure in a fixed basis, and store compact “shadow” records. Later, you estimate many different properties from those records without returning to the quantum device. Think of it as taking quick snapshots from random angles, then using geometry to reconstruct a 3D object.
ShadowQPT extends this logic from quantum states to quantum processes. The bridge between the two is the Choi matrix, a technique that encodes an entire quantum channel (the complete description of how a process transforms quantum information) as a single quantum state in a doubled mathematical space. Shadow tomography on that doubled-up state reveals everything about the underlying process.
The team develops two formulations: one using ancilla qubits (extra quantum bits entangled with the input) and one applying random operations on both input and output sides, a two-sided scheme that works without ancillas.
The measurement procedure follows concrete steps:
- Prepare random input states by applying random quantum operations to a fixed reference state.
- Run the quantum process on those inputs.
- Apply random measurement operations and record outcomes in the computational basis.
- Store classical shadow records, compact descriptions of each measurement outcome.
- Post-process classically to estimate properties of the Choi matrix.
One practical improvement stands out: the pair-factorized Clifford shadow. Instead of costly global random Clifford gates (structured quantum operations that are mathematically convenient but expensive to implement across all qubits simultaneously), the team applies random two-qubit Clifford gates to neighboring pairs. This is far more tractable on real hardware while preserving most of the statistical benefits.

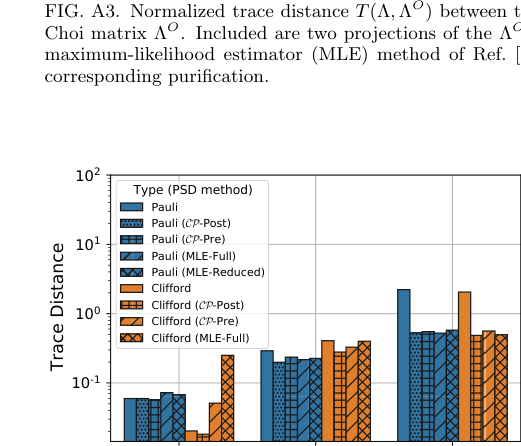

Raw shadow reconstructions can be unphysical, producing matrices with negative probabilities or other artifacts. The team addresses this by projecting the reconstructed Choi matrix back into the space of valid physical channels and applying a purification step. These corrections make a measurable difference on noisy hardware.
The efficiency gains are stark. For tasks like predicting how a process acts on a specific input/output pair, or extracting the behavior of any k-qubit subsystem, measurements scale only logarithmically with qubit count. That’s the difference between needing 30 measurements versus 10³⁰ for a 100-qubit system.
The team validated ShadowQPT on IonQ’s trapped-ion quantum computer, characterizing processes on 2, 3, and 4 qubits using both Pauli and Clifford measurements. They tested both unitary processes (clean, reversible quantum gates) and non-unitary channels involving noise.

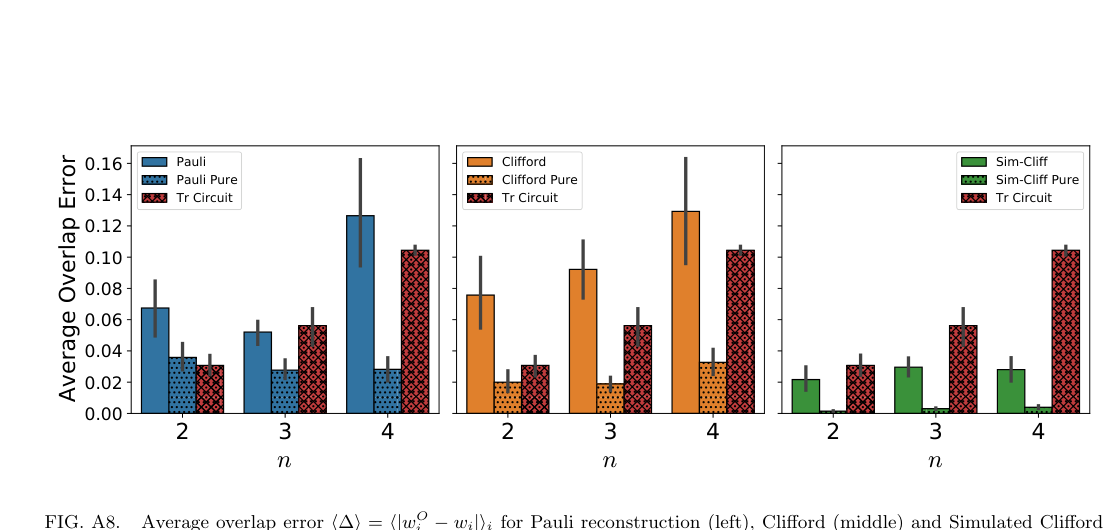

ShadowQPT-reconstructed processes showed good agreement with direct measurements. Clifford shadows outperformed Pauli measurements for full process reconstruction, consistent with theory. The physical projection and purification steps measurably boosted accuracy.
The team also demonstrated Hamiltonian learning, reconstructing the physical equations governing a quantum system directly from ShadowQPT data. They recovered parameters of a random 1D Ising model (a standard model of interacting quantum particles arranged in a line), with measurement requirements scaling logarithmically in system size.
Why It Matters
Quantum computing is entering an era where devices are just large enough to do interesting things but too noisy to run ideal algorithms. Every quantum algorithm on real hardware runs on a noisy quantum channel, not a perfect unitary. ShadowQPT gives experimentalists a practical, scalable tool to characterize that channel, to understand not just whether a device is broken, but how it’s broken.
The connection to Hamiltonian learning opens a further path: using quantum computers to study physics itself. If you can efficiently extract the effective Hamiltonian governing a quantum system’s dynamics from process tomography data, near-term hardware becomes a probe of materials, molecules, and field theories. Logarithmic scaling keeps this feasible as systems grow.
Classical shadow ideas were developed in quantum information theory, but they transfer well to the noisier, messier world of NISQ-era (Noisy Intermediate-Scale Quantum) experimentation. ShadowQPT is evidence of that.
ShadowQPT provides the first classical-shadow approach to quantum process tomography, achieving exponential measurement savings for tasks of practical interest and validated on real trapped-ion hardware. It is a concrete step forward for characterizing and trusting near-term quantum devices.
IAIFI Research Highlights
This work merges quantum information theory, quantum physics, and machine learning-inspired statistical methods into a practical tool for quantum device characterization, connecting theoretical guarantees with experimental implementation.
ShadowQPT's logarithmic measurement scaling parallels advances in efficient learning theory, showing how AI-inspired statistical compression can drastically cut the data requirements for learning complex quantum systems.
By enabling efficient Hamiltonian learning from quantum process data, ShadowQPT opens a route for quantum computers to reconstruct the physical laws governing quantum many-body systems, directly supporting IAIFI's mission of using AI to probe fundamental physics.
Future work will extend ShadowQPT to larger qubit counts, more complex noise models, and continuous-variable systems; the full paper is available at [arXiv:2110.02965](https://arxiv.org/abs/2110.02965).
