Constraining Power of Wavelet vs. Power Spectrum Statistics for CMB Lensing and Weak Lensing with Learned Binning

The Big Picture

Imagine trying to describe a crumpled piece of paper using only the average height of every square centimeter. You’d capture the broad hills and valleys but miss the sharp creases, the places where the paper folds abruptly into intricate patterns invisible to a simple average. Cosmologists face exactly this problem when mapping the invisible mass of the universe.

The universe’s matter distribution isn’t smooth. Gravity has spent 13 billion years pulling gas and dark matter into filaments, walls, and knots that make up the cosmic web. Early on, fluctuations were nearly Gaussian (random, well-described by averages), but nonlinear gravity has since introduced sharp features, edges, and asymmetries that standard statistical tools cannot see.

The workhorse of cosmology, the angular power spectrum, measures how much structure exists at each angular scale. It captures the Gaussian part beautifully. But it’s blind to those crumpled creases.

A team from Harvard, the University of Chicago, and the Kavli Institute tested whether wavelet-based statistics could do better. These mathematical tools, borrowed from signal processing, detect patterns at multiple scales simultaneously. The team applied them for the first time to two types of cosmic maps: one from the CMB (the cosmic microwave background, the faint afterglow of light from the early universe) and one from the gravitational bending of distant galaxy shapes. For the right combination of probes, wavelets beat power spectra by more than a factor of three.

Key Insight: Wavelet phase harmonics extract non-Gaussian structural information that power spectra miss, yielding up to 3.4× tighter cosmological constraints when combining CMB lensing with galaxy weak lensing from Euclid, all without any machine learning black box.

How It Works

The fundamental observable is the convergence map, a pixelated map of how much mass is projected along each line of sight. When a massive cluster sits between us and a distant light source, it bends that light slightly. Measure enough of these tiny deflections and you can reconstruct a map of all the mass in the universe.

The researchers used the ULAGAM suite of 2,000 N-body simulations, numerical experiments that track how 512³ dark matter particles move and clump under gravity from the early universe to today. From these simulations, they constructed two convergence maps:

• κ_CMB: the lensing signal imprinted on the cosmic microwave background, accumulated over the entire observable universe back to the surface of last scattering (the boundary beyond which the early universe was opaque, roughly 380,000 years after the Big Bang)
• κ_WL: the lensing signal from galaxy shapes, as would be measured by the Euclid space telescope over a specific redshift slice (a narrow window in cosmic distance and time)

Rather than asking which statistic extracts the most information in general, the team focused on two cosmological parameters: Ω_m (the total matter density) and σ_8 (the amplitude of matter density fluctuations at a scale of 8 h⁻¹ Mpc). These are the parameters weak lensing is most sensitive to.

A traditional power spectrum (C_ℓ) asks: how much power exists at each angular frequency? It’s a global, rotation-invariant measure.

The wavelet scattering transform (WST) cascades the field through multiple rounds of wavelet filtering and nonlinear operations, like a convolutional neural network with fixed, interpretable filters rather than learned weights. Wavelet phase harmonics (WPH) go further, explicitly capturing correlations between structures at different scales by tracking the phases of wavelet coefficients, not just their amplitudes.

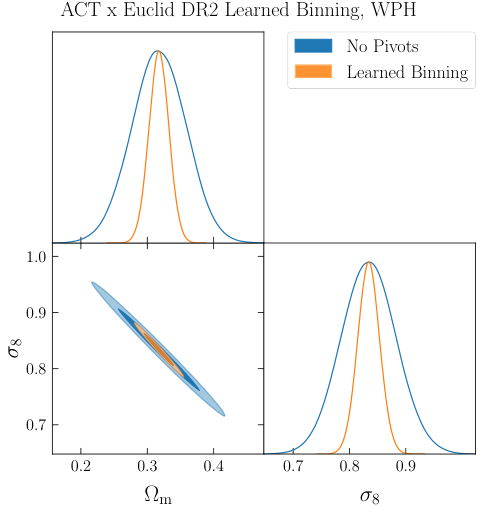

A key methodological contribution is learned binning, a compression scheme that puts all statistics on equal footing. Raw wavelet coefficients can number in the thousands. Rather than manually choosing which bins to combine, learned binning trains a linear compression on half the simulation suite and tests it on the other half. Training maximizes the determinant of the Fisher matrix, which measures how much information a statistic carries about the target parameters. Because compression is learned on different data than it’s tested on, overfitting is prevented by construction.

Why It Matters

For the cross-correlation between CMB lensing and Euclid weak lensing, WPH outperforms cross-power spectra by factors between 2.2 and 3.4 for individual parameter constraints. That’s not a modest improvement. It’s equivalent to running an experiment two to three times longer, or covering several times more sky, just by changing the statistic.

The story changes for CMB lensing alone. When analyzing κ_CMB in isolation, WST and standard C_ℓ’s yield comparable constraints. The gain from wavelets emerges specifically in the cross-correlation regime, where non-Gaussian structure in the lower-redshift galaxy lensing maps hasn’t been erased by projection effects. This makes physical sense: galaxy weak lensing probes structure closer to us, where nonlinear evolution is most advanced and the crumpled-paper creases are most pronounced.

Learned binning carries a broader lesson. Cosmological analyses face a growing pile of summary statistic choices: how many ℓ-bins for a power spectrum, which angular separations for a bispectrum (a statistic capturing three-point correlations beyond what a two-point power spectrum can see), which wavelet scales to include. Learned binning gives an interpretable way to compress any statistic to a fixed dimensionality while maximizing information content.

That wavelets benefit from this compression but power spectra don’t is itself a result. Standard power spectrum binning is already near-optimal, while wavelet coefficients gain substantially from data-driven compression.

What comes next is applying WPH to real Euclid data. The mission is currently surveying one-third of the sky, and its second data release (DR2) will cover thousands of square degrees overlapping with ground-based CMB telescopes like the Atacama Cosmology Telescope and the Simons Observatory. If the forecasts hold under real-world complications (intrinsic alignments, baryonic feedback, noise), wavelet phase harmonics could meaningfully sharpen constraints on the nature of dark matter and dark energy.

Bottom Line: Wavelet phase harmonics extract up to 3.4× more cosmological information than power spectra when combining CMB and galaxy lensing maps, and a new learned binning method provides an overfitting-resistant way to compress any summary statistic, a roadmap for squeezing maximum science out of next-generation surveys.

---
