Deep Learning and Symbolic Regression for Discovering Parametric Equations

The Big Picture

Imagine trying to decode the rules of a game by watching thousands of rounds, except the rules keep changing slightly between rounds. The core logic stays the same, but key parameters shift in ways you can’t directly observe. That’s the challenge facing scientists who want to discover governing equations of physical systems with varying coefficients. A wave propagating through different materials, electricity flowing through a non-uniform conductor, an atom cloud responding to an external field: all obey equations whose structure is constant, but whose coefficients shift in complex ways.

Symbolic regression is the branch of machine learning that rediscovers actual mathematical formulas from data, rather than fitting a black-box model that predicts accurately but can’t explain why. Feed in measurements, get back an interpretable equation. But existing approaches hit a wall when data comes from parametric systems, where an equation’s coefficients depend on context. Standard tools either ignore the variation, average over it, or fail entirely.

Researchers at MIT have proposed a neural network framework that extends symbolic regression to parametric systems while integrating with other neural network components. The result: a system that can autonomously discover scientific laws from complex, high-dimensional data.

Key Insight: By embedding symbolic regression inside a neural network that learns how coefficients vary, this approach recovers not just an equation but the parametric family of equations governing an entire class of physical systems.

How It Works

The foundation is the Equation Learner (EQL) network, developed in prior work. Ordinary neural networks use opaque internal functions like ReLU activations. The EQL swaps those out for recognizable mathematical operations: sin, cos, multiplication, division, addition. The network’s learned weights become the actual coefficients in a symbolic expression. When training converges, you don’t have a black box. You read the equation directly from the network structure.

The standard EQL handles only fixed equations. To tackle parametric systems, the team introduces two new variants:

• SEQL (Stacked EQL): Two EQL networks run in parallel. One processes input variables; the other processes the varying parameters. Their outputs are combined so the coefficient-predicting network can modulate the equation-learning network in real time.
• HEQL (Hyper EQL): Borrowing from hypernetworks, where a small meta-network generates the weights of a larger one, a compact network learns to produce the weights of the main EQL as a function of the varying parameters. It doesn’t learn fixed weights; it learns how weights should change.

Both architectures are differentiable end-to-end, so the entire system trains via standard gradient-based learning and can plug into other neural network components. The team shows this by attaching a convolutional encoder to the front of the HEQL, using it to analyze 1D images of oscillating spring systems. The image network extracts physical state from raw pixels; the HEQL then discovers the underlying equation. The full pipeline trains jointly, with no manual feature engineering.

Training uses L1 regularization to encourage sparsity, pushing small, irrelevant weights to exactly zero. Think of it as a built-in Occam’s Razor. A progressive masking strategy prunes weights below a threshold mid-training, gradually sculpting the network toward a clean symbolic expression.

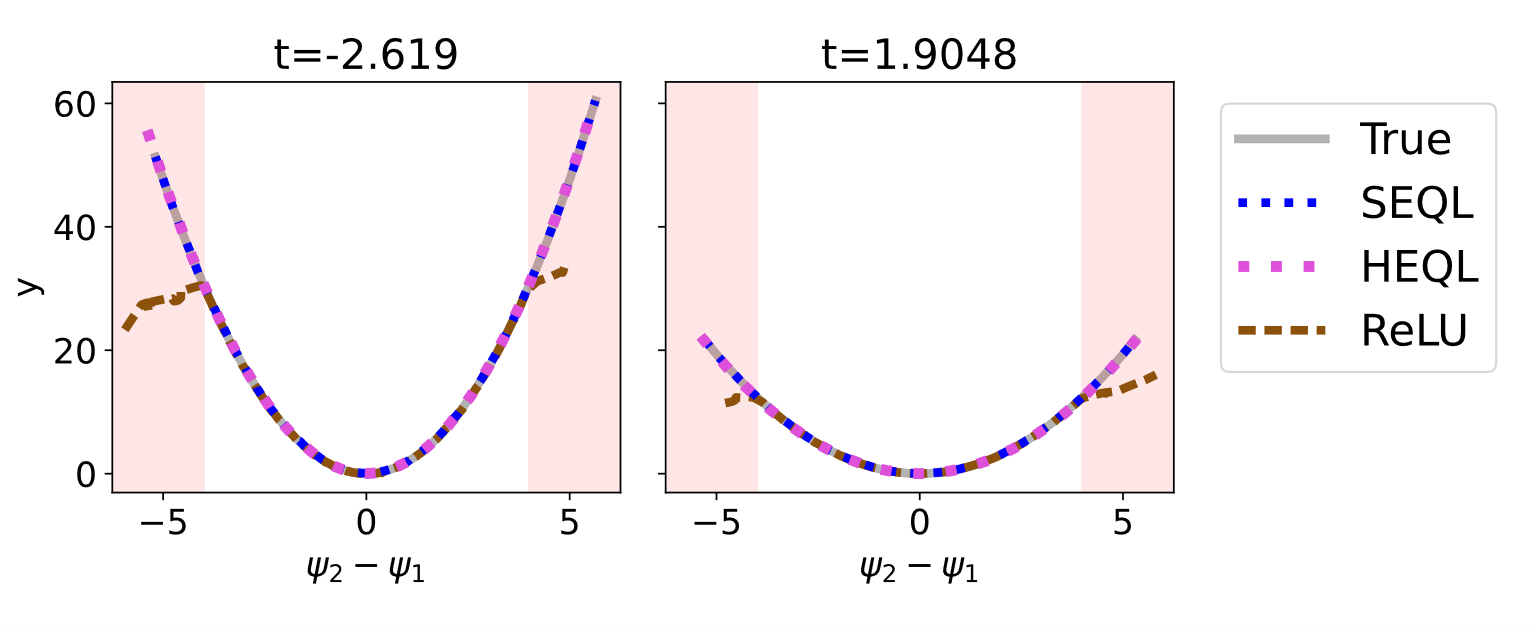

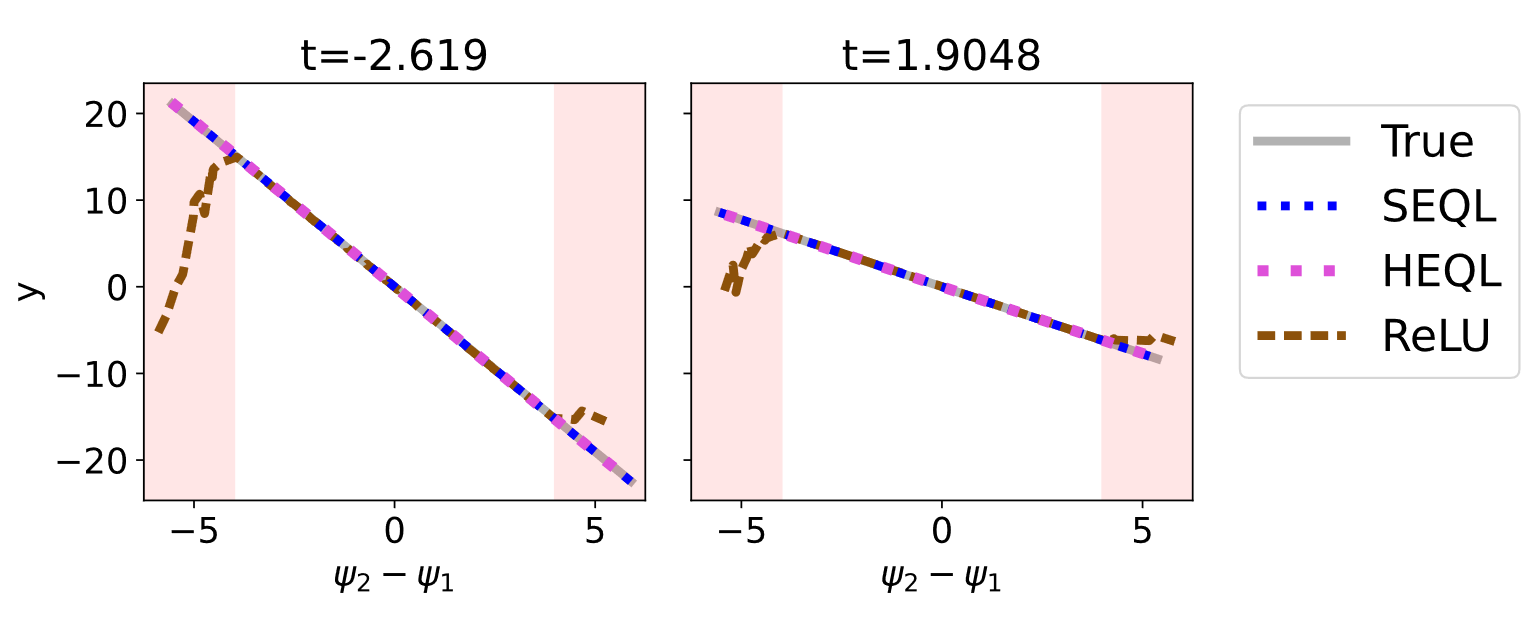

On analytic benchmark expressions and partial differential equations with spatially or temporally varying coefficients, both SEQL and HEQL recover the correct equation structure. This includes nonlinear systems. The models also extrapolate well outside of the training domain, something black-box networks are notoriously bad at. A model that has truly learned a governing law, rather than memorizing statistical patterns, should generalize beyond its training data. These architectures do.

Why It Matters

Partial differential equations with varying coefficients aren’t a niche curiosity. They show up everywhere in modern physics. Light and electromagnetic waves in materials with uneven properties (Maxwell’s equations). Quantum particles moving through non-uniform environments (the Schrödinger equation). Fluids flowing through heterogeneous media. All demand exactly the kind of parametric equation discovery this work enables. Previous approaches assumed coefficient variation was simple or linear. This framework imposes far fewer constraints.

The integration with convolutional networks opens a broader door. Many experimental datasets arrive as raw images or high-dimensional sensor readings. Piping such data directly into a symbolic regression system, with the full stack trained jointly, means scientists could point this tool at experimental measurements and receive interpretable equations with minimal preprocessing. The spring-system demonstration shows it’s achievable today, even if it’s not yet routine.

Future extensions could tackle turbulence modeling, materials discovery, or biological dynamical systems where governing equations remain poorly understood.

Bottom Line: This work teaches neural networks to discover the parametric family of laws governing physical systems, and to do so from raw, high-dimensional inputs.
