Fast Low Energy Reconstruction using Convolutional Neural Networks

The Big Picture

Imagine trying to figure out the direction, speed, and identity of a ghost — not by seeing it, but by watching how scattered candles flicker as it passes through the room. That’s roughly the challenge facing physicists at the South Pole. The IceCube Neutrino Observatory tries to reconstruct the properties of neutrinos: subatomic particles so elusive that trillions pass through your body every second without interacting.

Neutrinos come in three “flavors” and they oscillate, spontaneously changing type as they travel. Measuring how fast and completely they oscillate reveals deep truths about the Standard Model of particle physics. But to make those measurements, you first need to know where a neutrino came from, how much energy it carried, and what type it was.

Deep in the Antarctic ice, that reconstruction is hard. IceCube’s latest work deploys a suite of convolutional neural networks (CNNs), deep learning models originally developed to recognize patterns in photographs, trained to extract neutrino properties from sparse light signals in glacial ice. The payoff: reconstruction speeds and accuracies that make precision oscillation measurements possible at scale.

Key Insight: By treating IceCube detector data as a structured 3D image, CNNs can simultaneously estimate neutrino energy, direction, vertex position, flavor, and reject background, fast enough to power the full oscillation analysis pipeline.

How It Works

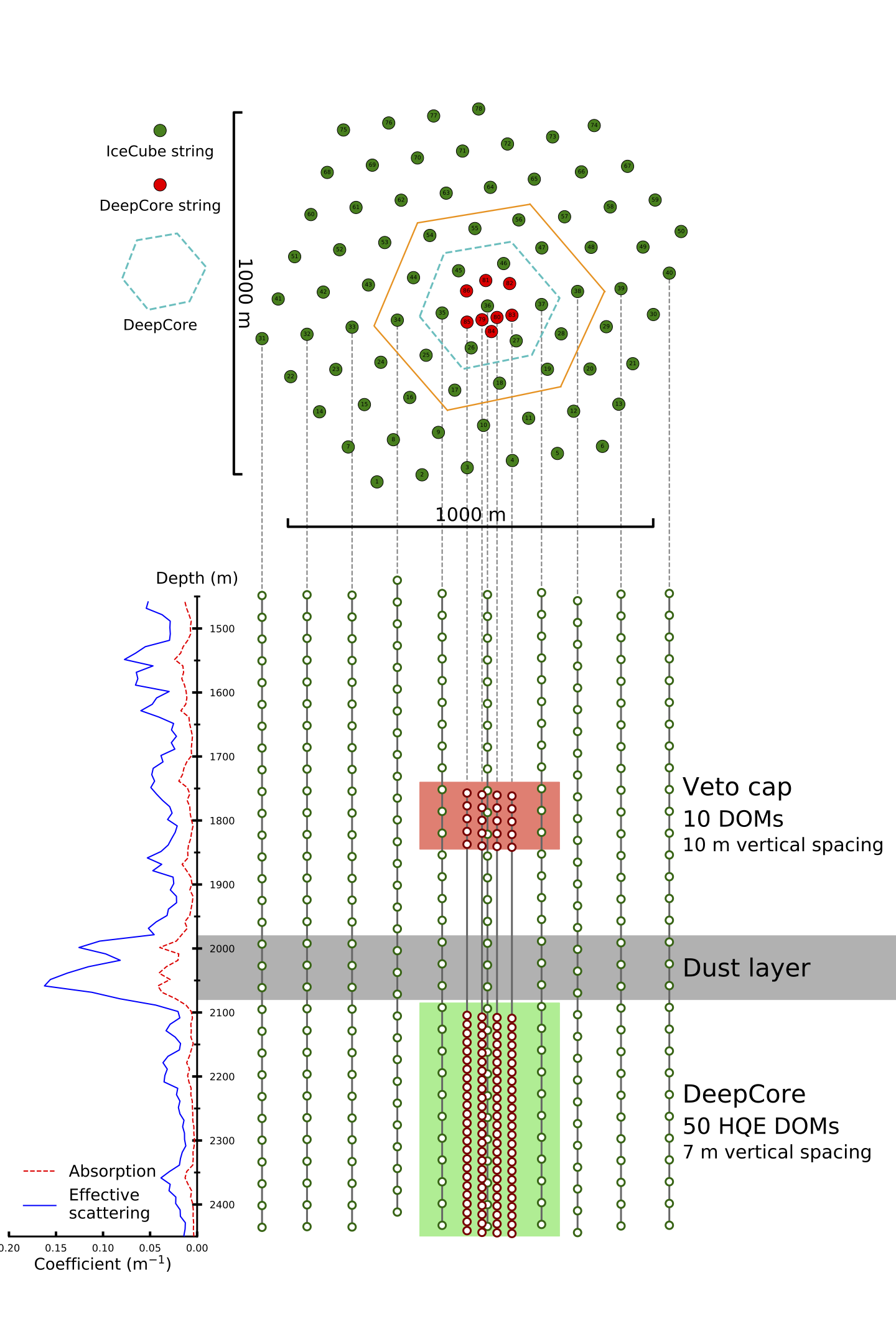

The IceCube detector buries 5,160 optical sensors in a cubic kilometer of Antarctic ice, arranged in vertical strings. When a neutrino collides with a water molecule, it produces a charged particle that emits Cherenkov radiation, a faint cone of blue light picked up by the sensors. The DeepCore sub-array occupies the densest, clearest region and pushes the detection threshold to just a few GeV, where atmospheric neutrino oscillations are most pronounced.

Below 100 GeV, events produce only a handful of photons across a small number of sensors. Traditional reconstruction methods, which fit particle tracks and cascades analytically, become slow and unreliable at these low energies. The fix: reframe the problem as computer vision.

Each event is mapped onto a hexagonally-structured 3D grid that preserves the geometric layout of the detector strings. CNNs, built to find faint patterns in spatially-organized data, turn out to be well suited to this structure.

The architecture processes events through several layers of learned filters:

1. Input representation — Raw photon arrival times and total charge at each DOM (Digital Optical Module) are encoded into image-like arrays, accounting for the hexagonal geometry of DeepCore strings.
2. Convolutional layers — Successive 3D convolutions detect local patterns (clusters of hits, timing gradients) and build up to detector-scale features.
3. Output heads — Separate branches predict reconstructed energy; zenith angle (the neutrino’s arrival direction measured from directly overhead); interaction vertex coordinates; a particle identification (PID) score distinguishing track-like events (muons leaving long trails) from cascade-like events (electron or tau neutrinos producing compact, spherical bursts); and a background classifier separating genuine neutrino interactions from atmospheric muons.

Speed was a hard constraint. Oscillation analyses require processing millions of simulated and real events. Likelihood-based methods can take seconds per event; the CNN reconstructions run orders of magnitude faster.

The networks were trained on detailed Monte Carlo simulations that mimic particle interactions and detector response, including photon propagation through inhomogeneous ice with depth-dependent scattering and absorption. Validation on real data confirmed that the networks generalize from simulation to observation, which is a notoriously difficult step in particle physics machine learning.

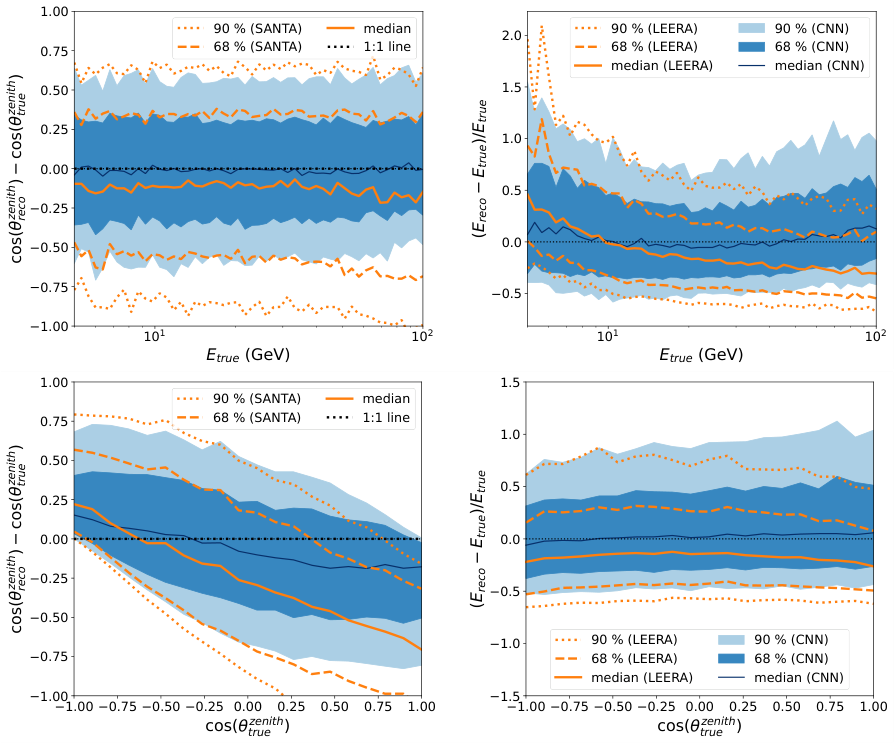

The CNN energy estimator achieves better resolution than previous methods at low energies, and directional reconstruction similarly outperforms classical fits. The PID network cleanly separates muon neutrinos (track signatures) from electron and tau neutrinos (cascade signatures), a separation essential for measuring both the disappearance and appearance channels of neutrino oscillation.

Why It Matters

Neutrino oscillation measurements probe physics the Standard Model barely anticipated. The precise values of the mixing angles, quantum mechanical parameters governing how much one neutrino flavor mixes with another, touch on some of the deepest open questions in physics: the origin of matter-antimatter asymmetry, grand unification, and potential new physics beyond the Standard Model.

IceCube-DeepCore sits in a sweet spot. It measures atmospheric neutrinos at energies and distances where the dominant oscillation channel, muon neutrino disappearance, hits maximum effect. This gives it competitive sensitivity to the mixing angle θ₂₃ and mass-squared splitting Δm²₃₂, two of the most important parameters in the neutrino sector.

This CNN framework isn’t a minor upgrade. It is the backbone of IceCube’s current-generation oscillation analysis. Fast, accurate reconstruction makes full likelihood analyses feasible, exploiting the complete reconstructed phase space rather than a handful of binned observables. As the proposed IceCube Upgrade adds densely-instrumented low-energy strings, this kind of reconstruction becomes even more necessary.

The approach also offers a template for other sparse 3D Cherenkov detectors, from ORCA in the Mediterranean to future water-based neutrino telescopes. When detector geometry can be mapped to a structured grid, the full toolkit of computer vision becomes available for particle physics reconstruction.

Bottom Line: IceCube’s CNN-based reconstruction turns sparse light patterns in Antarctic ice into precise neutrino properties at speeds that make large-scale oscillation analyses practical. The paper is available at arXiv:2505.16777.
