Grayscale to Hyperspectral at Any Resolution Using a Phase-Only Lens

The Big Picture

Imagine trying to reconstruct a full rainbow from a single black-and-white photograph, not just guessing which objects might be red or blue based on context, but actually recovering the precise spectral fingerprint of every pixel, across 31 distinct wavelength bands, from a grayscale image with no color information whatsoever. That’s the challenge a team of Harvard researchers just cracked.

Hyperspectral cameras are extraordinary scientific instruments. Where a standard camera captures just three color channels (red, green, and blue), a hyperspectral imager records dozens, giving scientists a rich spectral fingerprint of every point in a scene. These cameras detect crop disease from aircraft, identify minerals on Mars, and guide cancer surgeons in the operating room.

The catch? Traditional hyperspectral cameras are bulky, expensive, and light-hungry, relying on complex optical systems, stacks of color filters, or sensors with far more pixels than the final image. Researchers at Harvard’s School of Engineering and Applied Sciences have now pulled off something that probably shouldn’t work: reconstructing a full, high-resolution hyperspectral image from a plain grayscale snapshot, using nothing but a single thin flat lens and a plain camera sensor with no color filters.

Key Insight: A single diffractive flat optic imprints subtle chromatic aberrations into an ordinary grayscale image, and a patch-based diffusion model can decode those hidden spectral signatures to reconstruct full hyperspectral information at any image resolution.

How It Works

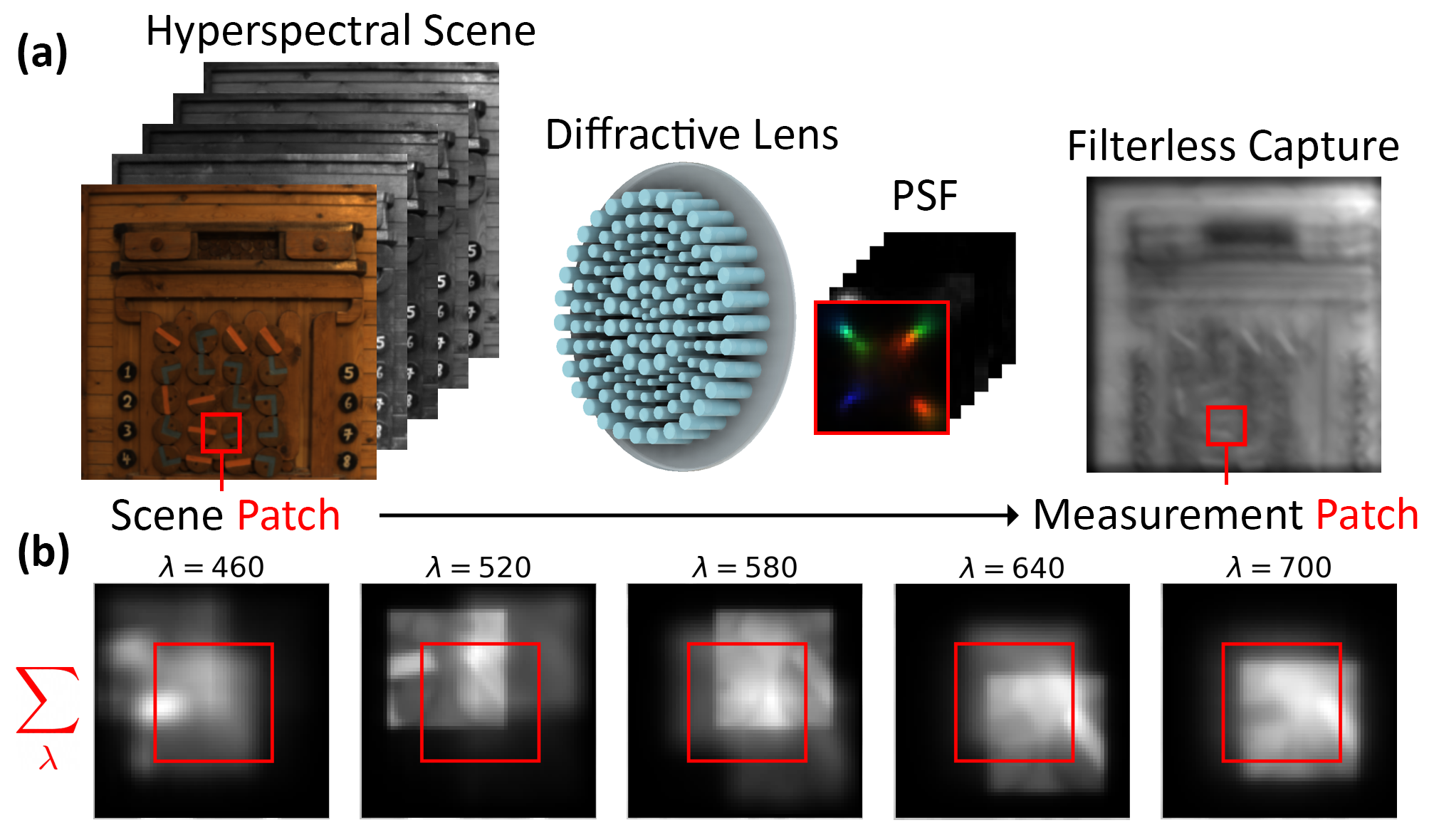

The magic begins with the lens itself. A diffractive optical element (essentially a precisely patterned flat surface, sometimes called a metalens) bends different wavelengths of light by different amounts. This isn’t a bug; it’s the feature.

Traditional camera designers work hard to eliminate chromatic aberration, the tendency of a lens to focus different colors at slightly different points. Here, the researchers deliberately embrace it. The lens smears each wavelength into a slightly different blur pattern on the sensor, encoding spectral information directly into the spatial structure of the grayscale image.

The optical encoding can be described precisely: each pixel’s recorded brightness is a weighted mixture of the scene’s spectral content, blurred and shifted by wavelength. The point spread function (PSF), which describes the precise shape of how a single point of light spreads on the sensor, differs across all 31 wavelength bands. So while the sensor records a single grayscale value at each pixel, that value secretly carries a scrambled mix of spectral signals. The reconstruction challenge is unscrambling them.

To decode this, the team trained a conditional denoising diffusion model (the same class of generative AI behind image synthesis tools), repurposed for a physical inverse problem. Three design choices make it work:

• Patch-based training: Rather than full images (scarce in hyperspectral research), the model trains on 64×64 spatial patches.
• Shift-invariant PSF: Because the diffractive lens produces the same blur response across the entire image plane, a patch-trained model generalizes to any image size, from a small test crop to a 1280×1280 full-field scene.
• PSF-guided inference: Patches are denoised in parallel, assembled into a full image, then a PSF-derived guidance signal forces the result to be consistent with the original grayscale measurement, resolving the ambiguity where neighboring patches bleed spectral signal across boundaries.

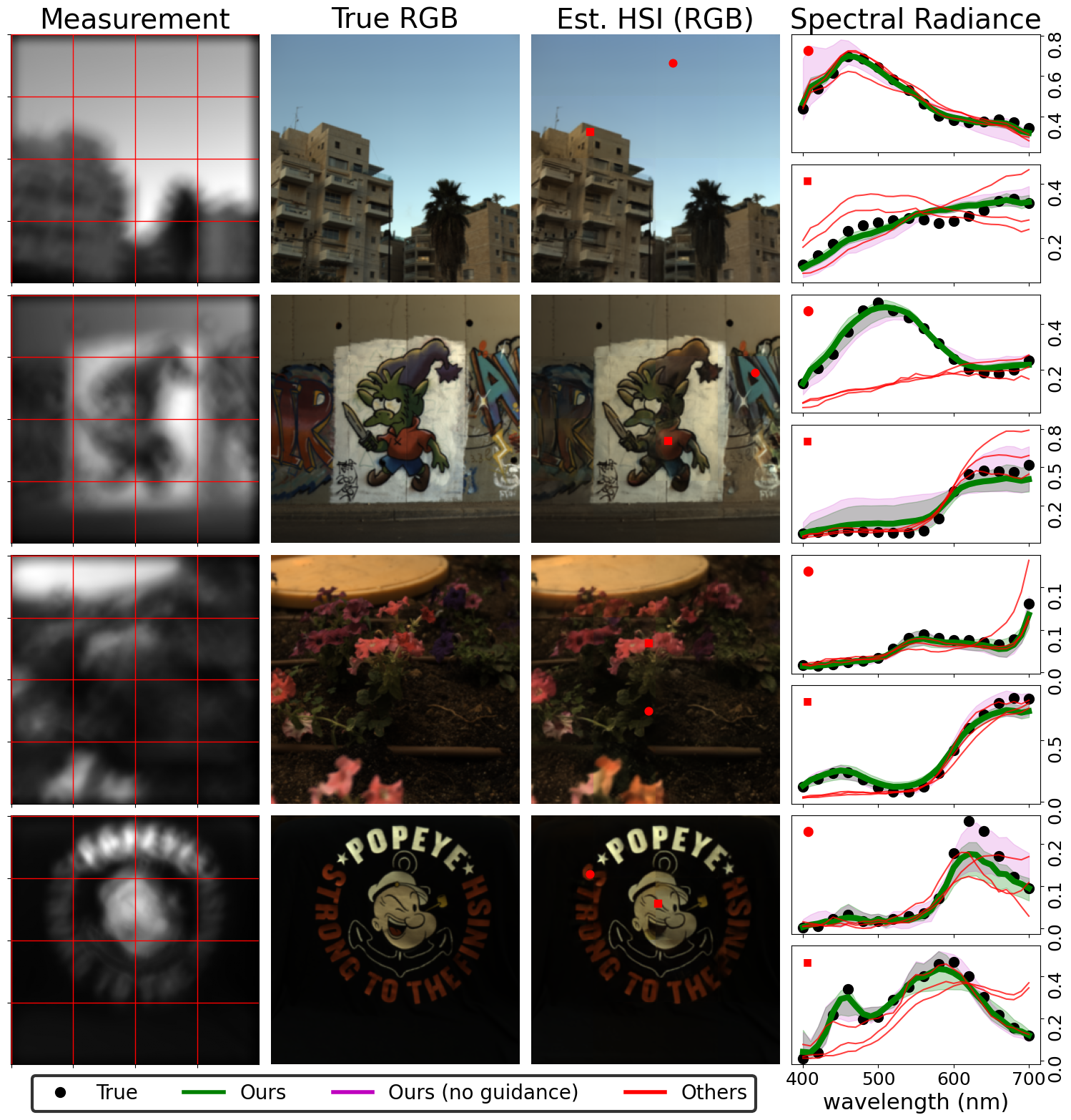

The team tested eight different PSF designs and found that even the simplest phase-only configurations, with PSF supports as small as 32×32 pixels, yielded excellent spectral reconstructions.

Drawing multiple samples from the model produces per-pixel uncertainty estimates (a probabilistic map of where the model is confident or guessing). These estimates strongly correlate with actual reconstruction error, giving users a built-in quality indicator at no extra cost.

Why It Matters

The paper has implications for both hardware design and AI methods.

For imaging hardware, the result is a design blueprint for a new class of snapshot hyperspectral cameras, dramatically simpler than anything currently on the market. A single flat optic, potentially mass-produced like a computer chip, combined with an off-the-shelf grayscale sensor, could replace instruments requiring multiple optical stages, dispersive prisms, and custom photosensor arrays. Compact, cheap, light-efficient hyperspectral sensing would accelerate applications from environmental monitoring to medical diagnostics.

On the AI side, the paper makes a quieter but equally important contribution: patch-based diffusion can succeed even when blur kernels are large relative to patch size, a regime where previous methods failed. The PSF guidance technique could transfer to other computational imaging problems where a physical forward model is known but the inverse is highly underdetermined (far more unknowns than measurements). Getting competitive reconstruction out of models trained from scratch on limited data suggests a general recipe for physics-informed generative modeling in data-scarce scientific domains.

Bottom Line: By marrying a minimalist single-optic design with patch-based diffusion and physics-guided inference, this Harvard team achieved what was previously unsolved: high-quality hyperspectral reconstruction from a grayscale snapshot, opening the door to compact, high-resolution spectral cameras built from a single flat lens and a plain photosensor.
