Multistable Shape from Shading Emerges from Patch Diffusion

The Big Picture

Stare at an image of a dimpled golf ball long enough and something strange happens: the dimples suddenly pop outward, becoming bumps. Flip the photo upside down and they sink back in. Your brain hasn’t changed, and neither has the image, but your perception of the three-dimensional shape has flipped entirely, toggling between two equally valid interpretations.

This isn’t a quirk. It’s a mathematical truth about matte surfaces: when photographed from a single viewpoint, multiple three-dimensional shapes can produce the exact same pattern of light and shadow. The image is genuinely ambiguous.

Humans experience this directly, alternating between competing shape interpretations in what vision scientists call multistable perception. Yet virtually every existing AI model for 3D shape recognition ignores this, committing to a single “best guess” and pretending the ambiguity doesn’t exist.

Researchers at Harvard and Kyoto University have now built a model that does what humans do: rather than committing to one answer, it holds multiple valid shape interpretations open simultaneously, all in a package that fits in 10 megabytes.

Key Insight: By training a tiny diffusion model on local 16×16 image patches and deploying it at multiple scales with consistency constraints, global perceptual ambiguity (the kind humans experience) emerges from purely local, bottom-up processing.

How It Works

The core idea is deceptively simple: train a small model to understand tiny image patches, then let the pieces talk to each other.

The team trained a denoising diffusion process on 16×16 pixel crops from synthetic images of matte objects. The model predicts surface normal fields, which encode the 3D orientation of each surface point as a vector perpendicular to the surface. Training on patches rather than whole images keeps the model compact (just 10MB of weights) and forces it to learn local shading relationships without baking in global scene biases.

During inference, the approach unfolds in three stages:

1. Patch-wise generation: The diffusion model runs in parallel across non-overlapping 16×16 patches, sampling possible surface normals for each patch independently.
2. Inter-patch consistency guidance: Two constraint losses nudge neighboring patches toward a globally coherent shape. A curvature smoothness loss penalizes abrupt, physically unrealistic changes in surface bending between patches. An integrability loss enforces that surface normals correspond to a valid 3D surface. Without it, adjacent patches could each make local sense but fail to stitch together into a coherent object.
3. Multi-scale V-cycle sampling: The model cycles between fine and coarse spatial resolutions during the diffusion process, resampling predictions at intermediate noise levels before resuming denoising. This “fine-coarse-fine” pattern is borrowed from classical image-processing optimization. Ablation experiments confirm it’s essential for finding globally consistent solutions rather than getting trapped in locally coherent but globally contradictory ones.

Lighting gets a pragmatic treatment. Instead of estimating a precise global light source (ill-posed given real-world complications like interreflections and ambient occlusion), each patch nominates a dominant light direction. When the model detects a global convex/concave ambiguity, all patches flip their interpretations in concert via a global flip mechanism.

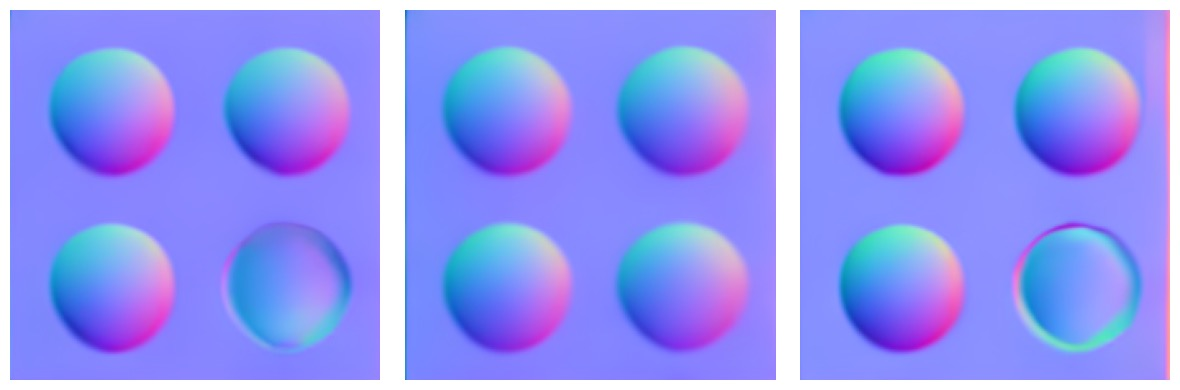

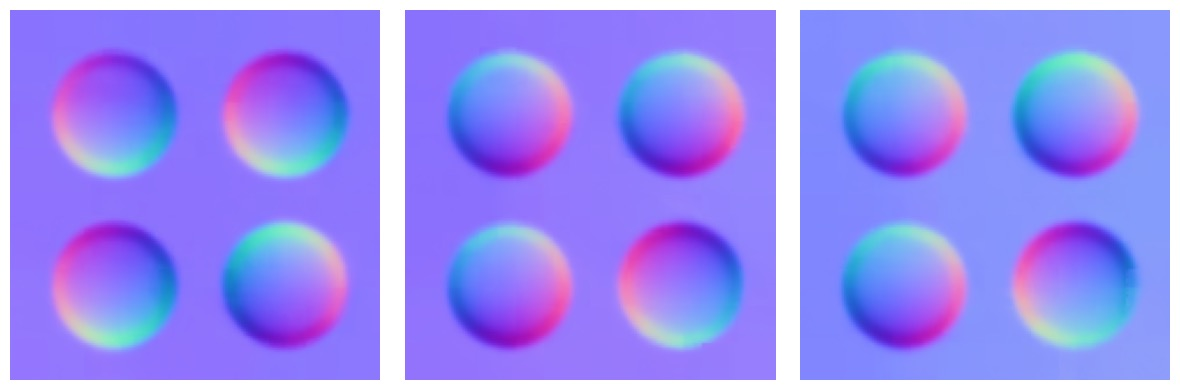

The results speak for themselves. For images that humans flip between, like the golf ball, the model produces genuinely multimodal output: distinct samples corresponding to concave and convex interpretations. For ordinary objects with clear occluding contours, it converges on a single accurate estimate. No special rule governs when to be certain versus uncertain. That behavior fell out of the architecture on its own.

Why It Matters

The immediate payoff is efficiency. Previous diffusion-based shape models like Marigold and Wonder3D require 2–3 gigabytes of weights and still produce unimodal outputs, single guesses that ignore perceptual ambiguity. This model achieves competitive accuracy on unambiguous images while also capturing multistability, in a package 200–300 times smaller. For robotics, augmented reality, or any application requiring real-time 3D scene understanding from a single camera, that size difference matters.

But the deeper implication is theoretical. The fact that global multistability emerges from purely local patch-level processing, with no high-level understanding of objects or scenes, suggests the human visual system might work on similar principles. David Marr’s “principle of least commitment,” a foundational idea in vision science, argued that perception should avoid premature decisions that might need to be undone. This model puts that principle into practice: a probabilistic architecture that keeps multiple shape interpretations alive, resolving ambiguity only when the evidence demands it.

Future work could extend the framework to non-Lambertian surfaces (shiny or transparent materials), incorporate sparse depth cues to study selective disambiguation, or push toward richer multi-scale coordination.

Bottom Line: A tiny patch-based diffusion model trained only on local image regions spontaneously learns to perceive 3D shape the way humans do, holding multiple conflicting interpretations simultaneously. Efficient, ambiguity-aware 3D perception doesn’t require massive models or global scene understanding.
