Polarization Multi-Image Synthesis with Birefringent Metasurfaces

The Big Picture

Imagine capturing a photo and simultaneously applying multiple artistic filters: one sharpening edges, another blurring backgrounds by depth, a third isolating specific wavelengths of light. Today you’d capture first, then run each filter separately in software, burning computational resources proportional to filter size. In real-time embedded systems or power-constrained environments, that bottleneck is real.

People have long wanted to offload some of this computation to optics itself, letting physics do the math before a photon hits the sensor. Previous systems could pull this off, but only for one filter at a time, and only with bulky bench-sized hardware involving beamsplitters and carefully aligned parallel optical paths.

A Harvard/Purdue team has built a compact, single-optic system that captures four differently-coded images simultaneously in one exposure. From those four images, it reconstructs not just one spatial filter, but an entire continuous family of filters, all without computation beyond a simple weighted sum.

Key Insight: By pairing a specially engineered flat lens with a sensor that measures light arriving at different orientations, this system offloads multi-filter image processing to optics, reducing digital computation to a per-pixel weighted sum regardless of filter size.

How It Works

The system has two core components. The first is a birefringent metasurface, a flat optical element just hundreds of nanometers thick, patterned with an array of precisely shaped silicon nanofins. “Metasurface” refers to any engineered surface with structures finer than the wavelength of light. “Birefringent” means it treats light differently depending on polarization, or which direction the light wave oscillates.

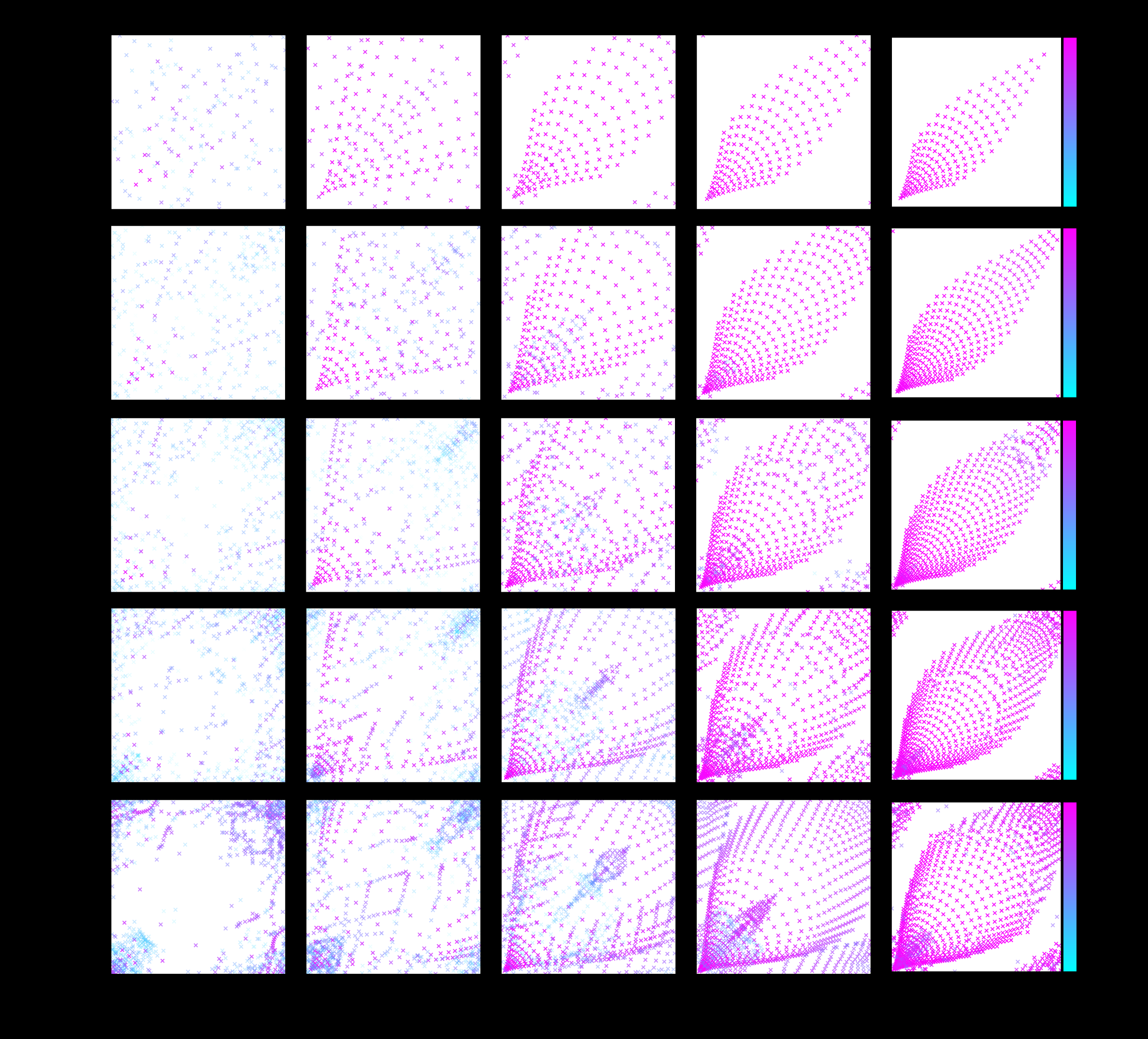

Each nanofin acts as a tiny polarization prism, delaying light oscillating in one direction by a different amount than the other. By controlling each nanofin’s width parameters (wx and wy), engineers sculpt how light from any scene point fans out across the sensor (the point spread function, or PSF) and make that spreading pattern differ by polarization.

The second component is a polarization-mosaicked photosensor, a camera sensor tiled with tiny polarization filters, analogous to how a Bayer RGB sensor tiles red, green, and blue filters across pixels. Four linear polarization orientations (0°, 45°, 90°, 135°) cover the pixel array. When light passes through the metasurface and lands on this sensor, each of the four polarization channels records a differently-coded version of the scene. The coding is baked into the optics: the metasurface’s nanofin geometry determines the four PSFs.

Here’s the elegant part. Any target spatial filter can be approximated as a linear combination of those four PSFs. Synthesizing a filtered image reduces to:

1. Capture one exposure, with four polarization channels recorded simultaneously
2. Choose summation weights α₀°, α₄₅°, α₉₀°, α₁₃₅°
3. Compute a per-pixel weighted sum across channels

No digital convolution. No sliding a filter template pixel by pixel across an image. Filter size doesn’t matter computationally because physics handles it. And by changing only the weights after capture, you select any filter from a continuous family that the metasurface was designed to span.

Designing the metasurface is a non-trivial inverse problem: working backwards from desired filters to precise nanofin shapes. The team solves it with gradient descent, iteratively nudging the design toward better solutions. They introduce a novel regularizer (a penalty term that discourages theoretically valid but practically useless solutions) to steer the optimizer away from designs that are too dim or too noisy for real imaging conditions.

Why It Matters

Previous systems combining optics and electronics for filtering could synthesize exactly one spatial filter. They required beamsplitters and parallel optical paths, and couldn’t distinguish scene content from the natural polarization of materials in the scene, a fundamental limitation for real-world use.

This system changes all three constraints at once. The single flat metasurface replaces bulky conventional optics. The four-channel architecture unlocks an entire filter family from one capture. And because polarization filters are applied at the aperture rather than at the scene, the system works on unpolarized real-world scenes without assumptions about material properties. Prior compact systems couldn’t close that gap.

Spatial filtering is foundational in computer vision, scientific imaging, and machine perception. It’s how cameras detect edges, isolate depth layers, or distinguish materials by their light signatures. The team shows edge detection, depth-selective focus, and wavelength-selective imaging in both simulation and with fabricated prototypes, including filters with prescribed depth and wavelength dependence that have no post-capture digital equivalent.

Where computational power is scarce (embedded sensors, satellite imagers, real-time robotics), moving filtering into optics could make a serious difference. The team also releases D-Flat, an open-source package for end-to-end metasurface design, making it easier for other groups to build on this foundation.

Bottom Line: A metasurface thinner than a wavelength of light, paired with a polarization sensor and a weighted sum, can replace large digital convolutions entirely, and do so for an infinite family of filters from a single snapshot.
