Safe but Incalculable: Energy-weighting is not all you need

The Big Picture

Imagine designing a ruler to measure something incredibly small, say the width of a single atom. You craft it carefully, but the ruler itself bends unpredictably due to unavoidable quantum effects. Your measurement is technically valid, but the answer is dominated by noise you can’t calculate or control. That’s the problem particle physicists face when deploying certain AI tools to study jets at the Large Hadron Collider.

At the LHC, quarks and gluons scatter at nearly the speed of light and spray out cascades of particles called jets. Physicists have developed mathematical tools called observables to extract useful information from these sprays. One prized property is IRC safety (infrared and collinear safety): the guarantee that a measurement doesn’t blow up when you add a very soft particle or split one particle into two nearly-identical ones.

IRC-safe observables can be calculated from first principles using perturbation theory, a systematic method where physicists compute increasingly precise corrections to their predictions. When deep learning arrived in particle physics, researchers naturally wanted IRC-safe neural networks. The standard trick: weight every particle’s contribution by its share of the jet’s total energy, so that tiny or nearly-identical particles barely influence the result.

But a team from Cornell, Lawrence Berkeley National Laboratory, and MIT has shown that energy weighting, while necessary, is not sufficient. An IRC-safe neural network can still be wildly sensitive to non-perturbative effects, the incalculable physics of how quarks bind into hadrons (composite particles like protons that detectors actually observe). Their fix, Lipschitz Energy Flow Networks (L-EFNs), adds a geometric constraint that tames this sensitivity, producing networks that are both safe and calculable.

Key Insight: A neural network can be infrared-and-collinear safe yet still be dominated by incalculable non-perturbative corrections, making it “safe but incalculable.” The remedy lies not in how you weight inputs, but in how steeply your network is allowed to respond to changes in them.

How It Works

The standard Energy Flow Network (EFN) processes a jet in three steps:

1. Each particle’s angular position is mapped by a learned function into an abstract, high-dimensional representation.
2. Those representations are summed with energy-fraction weights. This is the IRC safety guarantee, since soft or collinear particles carry negligible weight.
3. A second learned function maps the summed representation to a final output.

The paper’s central observation is that IRC safety only constrains what happens at the edges of particle space: very soft or very collinear configurations. It says nothing about how violently a network can respond to the physics separating parton-level events (quarks and gluons before binding) from hadron-level events (the particles a detector actually sees after hadronization). Non-perturbative corrections scale with how sensitive an observable is to energy rearrangement within a jet, and an unconstrained network can be exquisitely sensitive to exactly that.

To make this concrete, the authors trained a standard EFN to maximize its ability to distinguish parton-level from hadron-level jet samples. The result: the EFN became extraordinarily good at detecting hadronization despite remaining IRC safe. This is the “safe but incalculable” regime, where theoretical predictions formally exist but are swamped by non-perturbative effects.

The L-EFN resolves this by imposing a Lipschitz constraint on both learned functions. A function is L-Lipschitz if it can never change its output by more than L times the change in its input, a global bound on steepness. The authors enforce this via spectral normalization: at each training step, each layer’s weights are rescaled so no single layer amplifies input changes beyond a fixed limit. It’s computationally cheap and slots directly into standard gradient-based training.

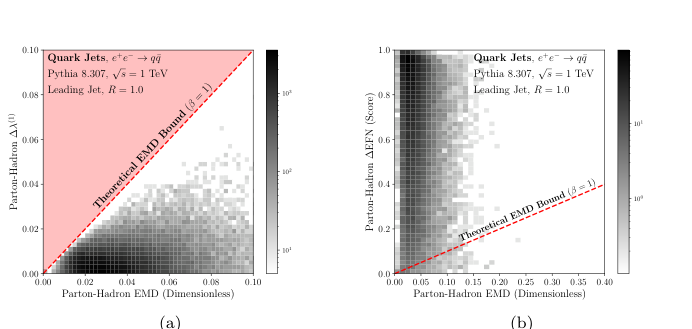

The mathematical motivation comes from the Energy Mover’s Distance (EMD), which quantifies how much “work” it takes to rearrange one jet’s energy distribution into another’s. A result called the Kantorovich-Rubinstein theorem shows that any 1-Lipschitz function acting on particle distributions is automatically bounded by the EMD between those distributions. Since the EMD between parton-level and hadron-level jets is small, a 1-Lipschitz network’s output difference is also small. Provably, by construction.

Why It Matters

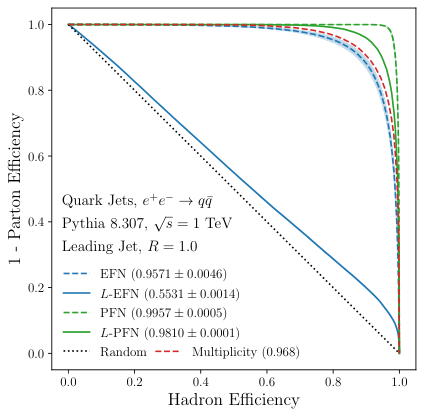

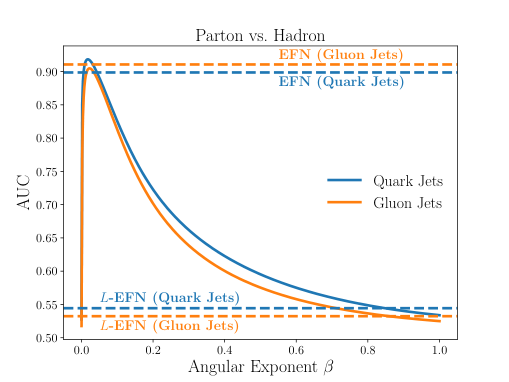

The researchers tested L-EFNs on generated quark and gluon jets, the canonical benchmark in jet substructure physics. L-EFNs are somewhat less powerful discriminators than unconstrained EFNs, since the Lipschitz constraint limits expressiveness. But they pay this modest accuracy cost with drastically reduced hadronization sensitivity.

Visualizing the learned internal representations reveals that the two architectures organize jet information in qualitatively different ways. Constrained networks learn smoother, more physically interpretable representations of jet structure, a sign that the geometric constraint is doing genuine physics rather than merely regularizing.

This work cracks open a problem the jet physics community has largely sidestepped: how to rigorously control non-perturbative corrections in machine-learned observables. The immediate next step is developing full theoretical calculations for L-EFN outputs, something the bounded Lipschitz norm now makes plausible for the first time.

The approach also generalizes. Any particle-cloud or graph-based network using energy weighting could potentially be upgraded with spectral normalization to gain the same calculability guarantees. As ML becomes ever more central to LHC analysis, the question of whether network outputs can be trusted against first-principles QCD (not just simulations) grows urgent. L-EFNs are a concrete step toward networks whose outputs can be genuinely compared with analytic calculations.

Bottom Line: Energy weighting makes a neural network IRC safe, but Lipschitz constraints are what make it calculable. This paper delivers both in a single, trainable architecture that could reshape how the field thinks about trustworthy machine learning for collider physics.
