Stochastic logic in biased coupled photonic probabilistic bits

The Big Picture

Imagine solving a puzzle where thousands of pieces must fit together simultaneously. Not one at a time, but all at once. Classical computers tackle such problems sequentially, which becomes impossibly slow as the puzzle grows. Nature, however, solves similar problems all the time: atoms in magnets spontaneously arrange into minimum-energy configurations without trying every combination. What if we could build a computer that worked the same way, using light?

That’s the idea behind probabilistic computing. Individual bits don’t hold fixed 0s and 1s but fluctuate randomly between both states, like a coin spinning in mid-air. String enough of these “probabilistic bits” together and the whole system naturally gravitates toward solutions to hard optimization problems. The catch: nobody had built a fully functional optical version. Until now.

Researchers at MIT and Stanford have shown that networks of coupled laser-like devices, guided by carefully injected beams of light, can carry out any kind of probabilistic logic operation. This turns existing optical hardware (machines already used to search for optimal solutions to complex problems) into a general-purpose probabilistic computer, something the field has been lacking.

Key Insight: By injecting a small coherent bias field into each node of an optical parametric oscillator network, researchers can implement the full Ising Hamiltonian, including the previously missing “Zeeman term,” enabling any probabilistic logic circuit to run on optical hardware.

How It Works

The approach boils down to a three-step recipe for converting any computational problem into something a photonic network can solve natively.

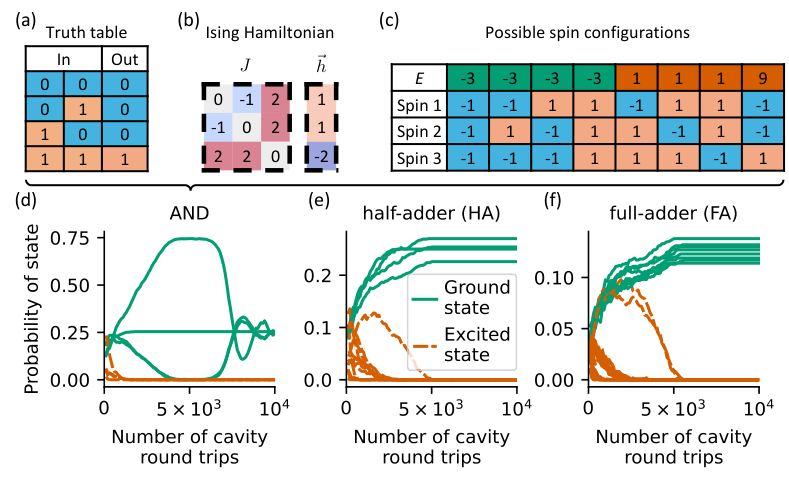

1. Write the truth table. Every logic gate (AND, OR, XOR) can be described by a table listing all possible input-output combinations.

2. Map to an Ising model. The truth table gets translated into an Ising Hamiltonian, the physics framework describing how a collection of interacting binary elements (magnetic spins pointing either up or down) settles into its lowest-energy state. This Hamiltonian has two components: a coupling matrix J that captures how spins interact, and a Zeeman vector h that acts as a local field pushing each spin toward 0 or 1. Previous optical Ising machines handled only the coupling part. A simple AND gate requires a nonzero Zeeman term; without it, general probabilistic logic is impossible.

3. Build the OPO network. Optical parametric oscillators (OPOs) are laser-like devices where a powerful pump drives a specially designed optical cavity. Above a threshold pump power, each OPO spontaneously settles into one of two output phases (+1 or −1), chosen randomly. That binary, random choice is exactly what a probabilistic bit does.

The central trick is the bias field: a weak beam injected into each OPO cavity at the signal frequency. This nudges the cavity’s internal state, tilting the odds of landing in +1 versus −1. Tune the bias field strength and you tune the probability, giving you the optical equivalent of a magnetic field nudging a spin.

The team derived this behavior from the density matrix formulation of quantum optics, which tracks both quantum uncertainty and classical randomness simultaneously. They showed it reduces to a set of stochastic differential equations governing how probabilities evolve over time.

By expanding the OPO’s in-phase amplitude in powers of the coupling/bias strength ε, they proved analytically that the network’s steady state minimizes the full Ising energy, Zeeman term included. The system relaxes toward configurations that correspond to the Ising ground state.

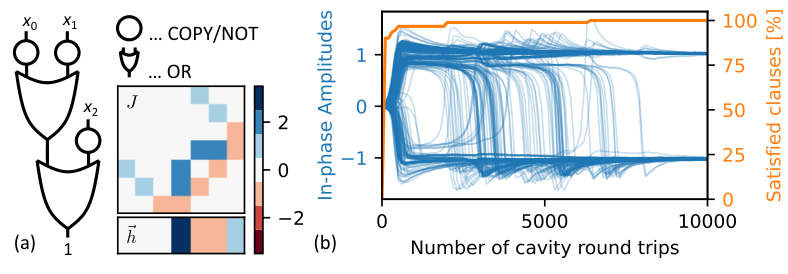

Numerical simulations confirmed the theory. Networks implementing AND, OR, and other stochastic logic gates reproduced the correct probabilistic truth tables, matching predictions from p-bit theory exactly.

Why It Matters

Probabilistic computing already has a growing list of applications: solving combinatorial optimization problems that defeat classical algorithms, running Bayesian inference, accelerating quantum Monte Carlo simulations, and training restricted Boltzmann machines. Building dedicated hardware for each of these is expensive and slow. A general-purpose photonic p-computer could handle all of them on the same physical substrate.

The timing is right. Moore’s law is stalling. Neural network accelerators are proliferating. Optical hardware is maturing rapidly. What’s been missing is a practical optical approach to probabilistic computing, one that requires no exotic new components, just clever use of existing OPO technology augmented with bias fields.

The path from proposal to working hardware is short: OPO networks already exist in labs, and injecting coherent bias fields is technically straightforward. Next steps involve scaling to larger networks and benchmarking against electronic p-bit implementations on real optimization problems.

Bottom Line: By adding a simple bias field to optical parametric oscillator networks, this MIT/Stanford team unlocks fully general probabilistic computing in the optical domain, turning coherent Ising machines into all-purpose stochastic logic engines that could outpace electronic alternatives in speed and energy efficiency.
